#Adding React Native to iOS app

React Native Enterprise Framework helps you package your React Native code into files that your iOS and Android apps can use. For iOS, it creates a .xcframework file that you can easily add to your app.

To add React Native to your iOS app, we'll package your React Native code into an XCFramework. This way, you don't need to set up Node.js or CocoaPods in your main app.

To make the integration simpler and more powerful, we'll use the React Native Brownfield library.

#Creating a New RNEF Project (Automated)

If you are creating a new RNEF project, you can select the brownfield-ios plugin to add brownfield capabilities, install dependencies, and jump to 6. Create the XCFramework step.

#Integrating to An Existing RNEF Project (Manual)

If you have an existing RNEF project, follow the instructions below.

#1. Create a New Framework in React Native app's Xcode:

1. Open your React Native project's ios/<project_name>.xcworkspace in Xcode

2. Add a new target by clicking File > New > Target

3. Choose the Framework template

4. Give your framework a unique name. You'll use this name when adding it to your main app

5. Right-click the framework folder and select Convert to Group. CocoaPods doesn't work properly with references. Perform this step for both <FrameworkName> and <FrameworkName>Tests folders.

6. Set these build settings for your framework:

   Build Setting	Value	What it does
   Build Libraries for Distribution	YES	Creates a module interface for Swift. Also checks if the framework works with your Xcode version.
   User Script Sandboxing	NO	Lets scripts modify files, which we need to create the JavaScript bundle.
   Skip Install	NO	Makes sure Xcode creates the framework files we need.
   Enable Module Verifier	NO	Skips testing the framework during build, which makes builds faster.

#2. Update CocoaPods in your React Native app:

1. Add your new framework to ios/Podfile:

   Podfile

   target '<project_name>' do
     # Add these lines
     target '<framework_target_name>' do
       inherit! :complete
     end
   end

#3. Add the Bundle Script:

1. In Xcode, click on your React Native app target
2. Go to Build Phases

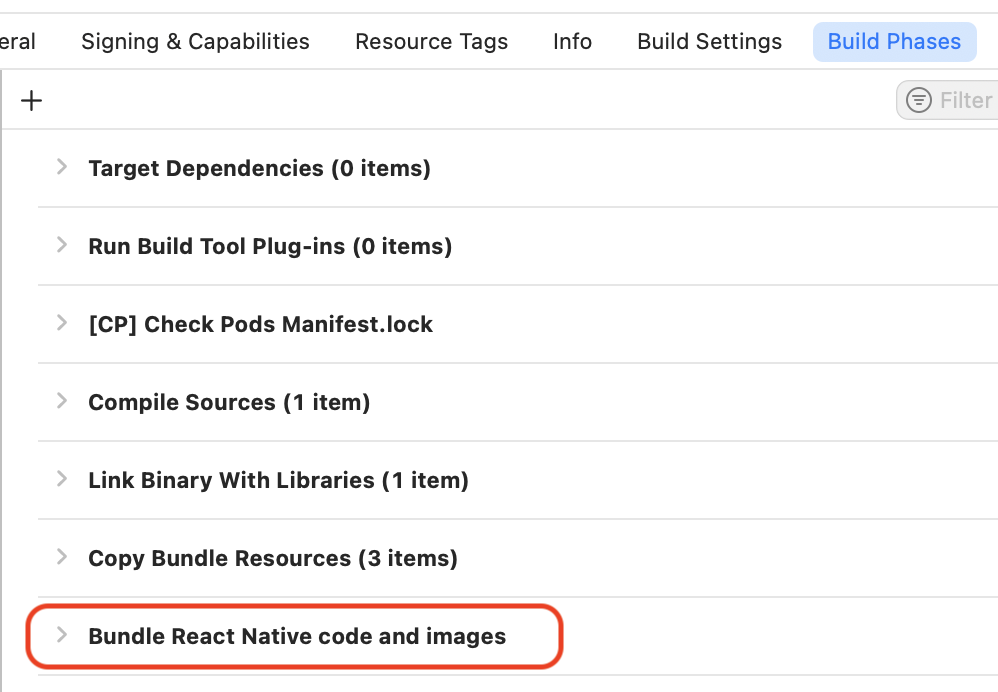

3. Find the Bundle React Native code and images step
4. Copy the script from there
5. Click on your framework target
6. Go to Build Phases

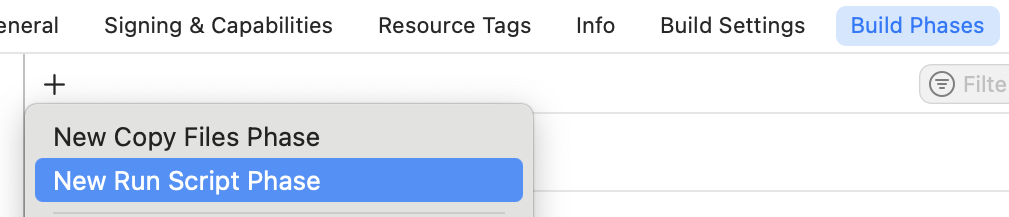

7. Click the + button and choose New Run Script Phase
8. Paste the script you copied
9. Name the phase Bundle React Native code and images
10. Add these files to the script's input files:
    • $(SRCROOT)/.xcode.env.local
    • $(SRCROOT)/.xcode.env

#4. Create the Framework's Public Interface:

1. Install React Native Brownfield library:
   npm

   yarn

   pnpm

   bun

   npm install @callstack/react-native-brownfield
2. Create a new Swift file in your framework folder using Xcode with the following contents:

   // Export helpers from @callstack/react-native-brownfield library
   @_exported import ReactBrownfield
   // Initializes a Bundle instance that points at the framework target.
   public let ReactNativeBundle = Bundle(for: InternalClassForBundle.self)
   class InternalClassForBundle {}

#5. Setup RNEF's brownfield plugin:

1. Add @rnef/plugin-brownfield-ios to your React Native project

   npm

   yarn

   pnpm

   bun

   npm install @rnef/plugin-brownfield-ios

2. Add this to your rnef.config.mjs:

   rnef.config.mjs

   import { pluginBrownfieldIos } from '@rnef/plugin-brownfield-ios';

   export default {
     plugins: [
       pluginBrownfieldIos(),
       // ...
     ],
   };

#6. Create the XCFramework

Run the following command in Terminal:

rnef package:ios --scheme <framework_target_name> --configuration Release

#7. Add the Framework to Your iOS App:

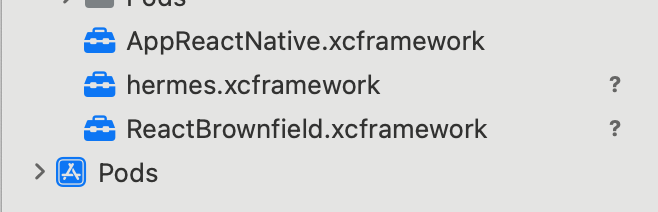

1. Open the .rnef/cache/ios/package directory and drag the following files into your app's Xcode project (you can select all at once):

   .rnef/cache/ios/package
   ├── hermes.xcframework                  # JavaScript runtime
   ├── ReactBrownfield.xcframework         # React Native Brownfield library
   └── <framework_target_name>.xcframework # Your framework target



   INFO

   Xcode builds depend on files being referenced in the project file. If you create a new source file without using Xcode, your file is not going to be referenced by the project.

2. Initialize React Native in AppDelegate.swift and show it using ReactNativeViewController available from React Native Brownfield library:

   AppDelegate.swift

   import <framework_target_name>

   @main
   class AppDelegate: UIResponder, UIApplicationDelegate {
       func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
           // Initialize React Native
           ReactNativeBrownfield.shared.bundle = ReactNativeBundle
           ReactNativeBrownfield.shared.startReactNative(onBundleLoaded: {
               print("React Native bundle loaded")
           }, launchOptions: launchOptions)

           // Add `window` property required by React Native
           window = UIWindow(frame: UIScreen.main.bounds)

           // Create VC that calls your module by name
           let reactNativeVC = ReactNativeViewController(moduleName: "Enterprise")

           // Display the view as full window or anyhow you need
           window?.rootViewController = reactNativeVC
           window?.makeKeyAndVisible()
       }
   NOTE

   Instead of using AppDelegate you can also use SceneDelegate

   #8. Run your native iOS App

   Now that you have everything set up, you can run your app in Debug or Release configuration, and it will display a React Native app we just packaged with package:ios command.

   #Debug configuration

   When running in Debug, React Native Brownfield will expect you to run a JS dev server.

   You can do so by running start command in your Terminal app:

   npx rnef start

   #Release configuration

   When running in Release, React Native Brownfield will load the JS bundle (main.jsbundle) directly from the release XCFramework file without requiring you to run any JavaScript tooling.
